Access Your Roof for Essential Maintenance Tasks

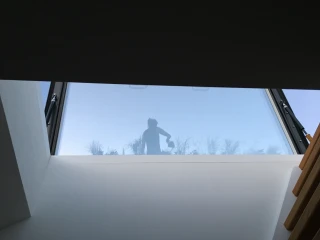

The Glazing Vision SkyHatch Skylight is a practical and stylish solution for safe and easy access to your roof to carry out essential maintenance works and is available in both Manual and Electric operations.
With its secure locking mechanism and precise engineering by our in-house team, the Glazing Vision SkyHatch Skylight ensures peace of mind alongside its elegant design.
Available in both manual and electric operation, the Manual SkyHatch Skylight uses a combination of gas struts and spring assisted opening mechanisms to make the unit easier to open and remain stable in the open position. The Electric SkyHatch is operated effortlessly from a wall switch, offering connectivity to your Home Automation System as well as intelligent Rain Sensors and Thermostat. The Electric Access SkyHatch can be utilized for natural ventilation when partially opened.
Key features
Optional extras
Talk to a Product Specialist
Technical Specification Manager details not found
We're sorry, but we couldn't find a Technical Specification Manager for this area.
Weโll find the best person for you to speak to and be in touch within one working day.
Your TSM
Specification
Min span |
43" |
Max span |
43" |
Set width |
43โ, 59โ or 79โ only |
||
Min curb pitch |
5/8โ : 12โ |
Max curb pitch |
2โ : 12โ |
Glazing Vision recommends a curb pitch of at least 1-1/8โ : 12โ (5ยฐ)
Note that the minimum and maximum span, width and pitch are dependent on various factors, your technical sales advisor will be happy to advise on these. Further information on curb requirements and product dimensions can be found on our website or by contacting your technical sales advisor.
Min span |
32" |
Max span |
59" |
Min width |
32" |
Max width |
78" |
Min area |
6.9 ft2 |
Max area |
23.6 ft2 |
Min curb pitch |
3 degrees |
Max curb pitch |
10 degrees |
Note that the minimum and maximum span, width and pitch are dependent on various factors, your technical sales advisor will be happy to advise on these. Further information on curb requirements and product dimensions can be found on our website or by contacting your technical sales advisor.
Structural integrity of the SkyHatch Access Skylight is assured through the use of finite element analysis (FEA) and testing. Further information and specific performance details can be obtained from your Technical Sales Advisor.
The Glazing Vision SkyHatch Skylight has been designed by our in-house team with security as a priority and has been extensively tested.
Please contact our team if you have off-spec requirements for dimensions, glass or anything else, weโll be happy to assist
