Maximise Natural Light and Ventilation
pitched-roof
ventilation

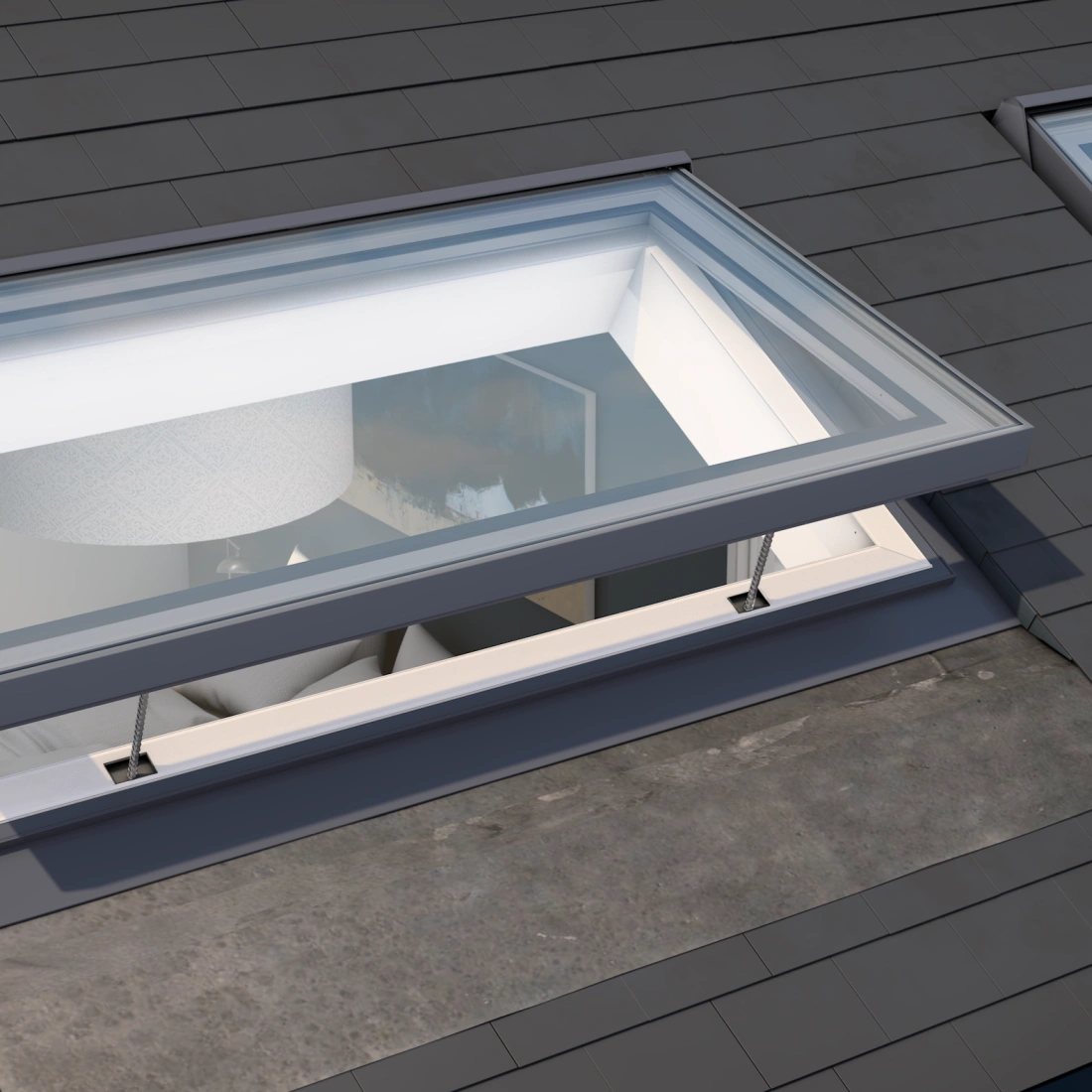

The Glazing Vision PitchVent is a UKCA and CE marked ventilation roof window designed to be installed in pitched tiled roof applications at roof pitches between 15° and 60° and is available in both Manual and Electric operations.
The Manual PitchVent is operated through the use of a Crank Handle and can be opened to a maximum height of approximately 220 mm.
The Electric PitchVent is operated through one/two chain actuators (Depending on the unit size) to a maximum height of approximately 280 mm.
The PitchVent Roof Window is available in portrait and landscape formats, allowing it to be specified in a wide variety of projects as it can be adapted to your unique requirements through a wide range of glass specifications, optional extras, and sizes.
Key features
Optional extras
Connect With a Technical Specification Manager
Technical Specification Manager details not found
We're sorry, but we couldn't find a Technical Specification Manager for this area.
We’ll find the best person for you to speak to and be in touch within one working day.
Your TSM
Specification
Min span |
800mm |
Max span |
1500mm |
Min width |
250mm |
Max width |
1500mm |
Min roof pitch |
15 degrees |
Max roof pitch |
60 degrees |
Note that the minimum and maximum span, width and pitch are dependent on various factors, your technical sales advisor will be happy to advise on these. Further information on upstand requirements and product dimensions can be found on our website or by contacting your technical sales advisor.
Min span |
800mm |
Max span |
3000mm |
Min width |
800mm |
Max width |
3000mm |
Min upstand pitch |
15 degrees |
Max upstand pitch |
60 degrees |
Note that the minimum and maximum span, width and pitch are dependent on various factors, your technical sales advisor will be happy to advise on these. Further information on upstand requirements and product dimensions can be found on our website or by contacting your technical sales advisor.
Structural integrity of the PitchVent Roof Window is assured through the use of finite element analysis (FEA) and testing. Further information and specific performance details can be obtained from your Technical Sales Advisor.
The PitchVent Roof Window has been expertly designed with security as a priority - The product has been extensively tested and is UKCA and CE marked in accordance with EN 143511:2006+A2:2016.
Please contact our team if you have off-spec requirements for dimensions, glass or anything else, we’ll be happy to assist
Standards
Awards and certifications
Made in Britain
Glazing Vision rooflights are assembled on site in our rural Norfolk factory to ensure a high quality product - Made in Britain, trusted internationally.
ISO 9001 & ISO 14001
Glazing Vision operates to BSI ISO9001 and ISO14001 standards to ensure high quality rooflights
QualiCoat Applicator
Glazing Vision rooflights feature QualiCoat approved aluminum framework to ensure a high quality paint finish
UKCA & CE Marked
Select Glazing Vision Rooflights and Roof Windows are UKCA & CE Marked after undergoing extensive testing.
RIBA Providers Network member
Glazing Vision provides a number of comprehensive RIBA Certified CPDs to the architectural community.
Compare with other products
access
fire-rated
flat-roof
pitched-roof
residential
ventilation
walk-on
Pitchvent Roof Window
Pitchridge Fixed Roof Window
Pitchglaze Fixed Roof Window
Visionvent Vent Only Skylight
Flushglaze Fixed Skylight
Downloads
Specification
Manuals & guides
CAD & BIM
Frequently Asked Questions
Glazing Vision understands that choosing the right rooflight or roof window for your property is an important decision. To help, we've compiled answers to some of the most frequently asked questions about our PitchVent Roof Window - If you have a question that is not listed here, feel free to contact our experienced team.
Glazing Vision does not sell “traditional” windows, we specialise in the manufacture of roof windows; Roof windows are specifically designed to be installed flush with the roof tiles at a pitch of 15-60 degrees. Unlike traditional windows, Glazing Vision roof windows provide you with uninterrupted views to the outside, increasing natural daylight flow.
A Rooflight is designed to be installed on an upstand, at a standard pitch range of 5-70 degrees, whereas a roof window is designed to be installed flush with the roof tiles at a steeper pitch range of 15-60 degrees.
No, as the FENSA certification scheme does not apply to rooflights, and does not apply if the roof window is a new addition to your property - You will require approval from Building Control if this is the case.
Glazing Vision provides a rain sensor as an optional extra which allows the rooflight to automatically close when rain is detected, allowing your home interior to be protected from the elements.
Lead times vary per product as they are carefully assembled and tested in-house, but your local Technical Sales Manager can advise you of our latest lead times.
