Our team will give you expert advice and guidance on the entire design and specification process, including our extensive product range, key considerations, optional extras, and our dedicated bespoke service
Effortlessly Maximise Natural Daylight Below
flat-roof

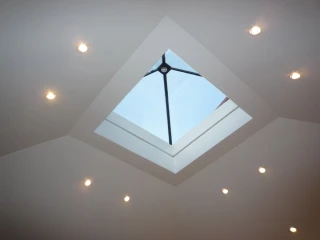

The Glazing Vision Fixed Pyramid Rooflight is precision-made by our in-house team, using glass-to-glass joins and structural silicone seals, it offers minimal visible internal structure, allowing the maximum amount of natural daylight to pour into the room below.
Built with a dual-colour, thermally broken aluminium framework as standard, the exterior is finished in RAL 7015 Slate Grey to complement most roof materials, while the interior is RAL 9010 Pure White for a clean, bright look inside.
For an extra touch of atmosphere, optional downlighters can be discreetly integrated into the apex cap, turning the rooflight into a striking architectural feature even after the sun goes down.
Key features
Optional extras
Discuss Your Project
Get In Touch
Tell us all about your project, and our team will be in touch to discuss
Our team will be in touch to discuss your project and requirements.
Your TSM
Specification
Min span/width |
600mm |
Max span/width |
1500mm |
Min upstand pitch |
0 degrees |
Max upstand pitch |
0 degrees |
Note that the minimum and maximum span, width and pitch are dependent on various factors, our team will be happy to advise on these. Further information on upstand requirements and product dimensions can be found on our website or by contacting our team.
Structural integrity of the Fixed Pyramid Rooflight is assured through the use of finite element analysis (FEA) and testing. Further information and specific performance details can be obtained from our team. The standard Pyramid Rooflight has been thoroughly tested.
Please contact our team if you have off-spec requirements for dimensions, glass or anything else, we’ll be happy to assist
Compare with other products
access
fire-rated
flat-roof
pitched-roof
residential
ventilation
walk-on
Fixed Pyramid Rooflight
Fixed Lantern Rooflight
Flushglaze Fixed Rooflight
Flushglaze Fixed Multipart Rooflight
Flushglaze Circular Fixed Rooflight
Flushglaze Eaves Rooflight
Downloads
Specification
Manuals & guides
CAD & BIM
Frequently Asked Questions
Glazing Vision understands that choosing the right rooflight for your property is an important decision. To help, we've compiled answers to some of the most frequently asked questions about our Fixed Pyramid Rooflight - If you have a question that is not listed here, feel free to contact our experienced team.
Select Glazing Vision flat rooflights can be installed at a pitch of up to 70 degrees such as the Flushglaze Fixed Rooflight, however if your roof pitch exceeds this, you will need to install a roof window.
No, you can not order just the glass from us as we assemble the entire rooflight unit in our in house factory to ensure a high level of quality.
Fixed rooflights boast a benefit that opening rooflights do not, they are not restricted in their placement as no moving elements need to be considered. However multiple considerations need to be taken, for example if the roof is strong enough to hold the additional weight of a rooflight or if the rooflight will be in a location that receives enough natural daylight.
Our flat rooflights are measured by their External Curb Dimensions, which refer to the distance between the external of the Curb to the external of the Curb on all sides.
