Prioritise Safety Without Compromising Style
Flat roof
Fire rated
The Glazing Vision X-Vent Rooflight is a fully tested and certified fire safety product and has been UKCA marked to EN 12101-2:2003.
The Glazing Vision xVent Rooflight does not compromise style whilst enhancing safety, all of its operating mechanisms are housed within the framework, so when you look up, you have an uninterrupted view of the sky. With intelligent battery backup, dual scissor actuators and thermally broken framework, the xVent ticks all of the boxes for designers, architects and their clients.

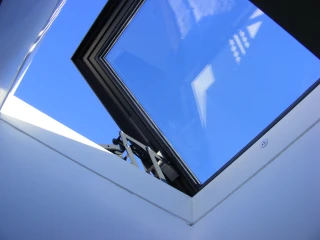

As a certified safety cortical product, the xVent has been rigorously tested and cycled thousands of times in order to meet European standards. Upon installation it is connected to the fire alarm system which, when triggered, will automatically open the unit to 140° for fast, effective smoke ventilation. The xVent has dual functionality and you can also use it as a day-to-day vent unit, opening up to 45°
Our xVent Rooflight is available in two standard sizes providing 1m² and 1.5m² clear opening however we can integrate it into our own Flushglaze system for larger roof glazing requirements.
Key features
Optional extras
Specification
Min span |
1400mm |
Max span |
1400mm |
Min width |
1400mm |
Max width |
1900mm |
Min internal measured free area |
1.00 m2 |
Max internal measured free area |
1.50 m2 |
Min upstand pitch |
3 Degrees |
Max upstand pitch |
5 Degrees |
Glazing Vision recommends a pitch of at least 5° for standard units.
Note that the minimum and maximum span, width and pitch are dependent on various factors, your technical sales advisor will be happy to advise on these. Further information on upstand requirements and product dimensions can be found on our website or by contacting your technical sales advisor.
Structural integrity of the X-Vent AOV Rooflight is assured through the use of finite element analysis (FEA) and testing. Further information and specific performance details can be obtained from your Technical Sales Advisor.
The Glazing Vision X-Vent Rooflight has been expertly designed with security as a priority - The product has been extensively tested.
This product is tested to LPS2081 Issue 1:2015. It is approved by the Loss Prevention Certification Board (Cert/LPCB ref: 1347a) and Secured by Design:
To achieve Security Rating A, the inner pane must be at least 8.8 mm PVB laminated glass (two 4 mm thick panes separated by an 0.8 mm thick PVB interlayer).
To achieve Security Rating B, the inner pane must be at least 9.5 mm ionomer laminated glass (two 4 mm thick panes separated by a 1.5 mm thick ionomer interlayer).
Please contact our team if you have off-spec requirements for dimensions, glass or anything else, we’ll be happy to assist
Standards
Awards and certifications
Made in Britain
Glazing Vision rooflights are assembled on site in our rural Norfolk factory to ensure a high quality product - Made in Britain, trusted internationally.
RIBA Providers Network member
Glazing Vision provides a number of comprehensive RIBA Certified CPDs to the architectural community.
ISO 9001 & ISO 14001
Glazing Vision operates to BSI ISO9001 and ISO14001 standards to ensure high quality rooflights
Secured by Design
Glazing Vision rooflights have been extensively tested and Secured by Design
Approved by the LPCB
Glazing Vision Rooflights have been approved by the Loss Prevention Certification Board, allowing them to meet enhanced security requirements.
UKCA & CE Marked
Select Glazing Vision Rooflights and Roof Windows are UKCA & CE Marked after undergoing extensive testing.
Compare with other products
Access
Fire rated
Flat roof
Pitched roof
Residential
Ventilation
Walk on
xVent AOV Rooflight
Flushglaze Fire Rated Rooflight
Visionvent Vent Only Rooflight
Pitchvent Roof Window
Manuals & guides
CAD & BIM
Frequently Asked Questions
Glazing Vision understands that choosing the right rooflight for your property is an important decision. To help, we've compiled answers to some of the most frequently asked questions about our X-Vent AOV Rooflight - If you have a question that is not listed here, feel free to contact our experienced team.
Yes, you can connect your Glazing Vision rooflight to your Building Management System, which allows you to effortlessly and intelligently control the unit.
Glazing Vision provides a rain sensor as an optional extra which allows the rooflight to automatically close when rain is detected, allowing your home interior to be protected from the elements.
The xVent is available in two standard sizes providing 1m² and 1.5m² clear openings however the X-Vent can be integrated into our Flushglaze Rooflight if larger glazing is required.
Yes, the Glazing Vision X Vent Rooflight is UKCA marked to EN 12101-2-2003.
Yes, Glazing Vision rooflights have been expertly designed to comply with UK Building Regulations and other relevant standards. For details about how a particular rooflight complies with regulations, reach out to our experienced team.
