Add a Striking Architectural Touch
Flat roof
The Glazing Vision Flushglaze Multi-Part Rooflight is a versatile glazing solution designed to enhance natural daylight in any setting be it residential, commercial or public.
The Flushglaze Multi-Part Rooflight comprises of large areas of glazing that are linked together using a variety of different methods. If you are looking to maintain a ‘frameless’ internal appearance, the panes can be structurally bonded together with a silicone seal. For larger areas of glazing, aluminium back to back angles or structural glass fins can be utilised - Using glass fins for structural support will result in an elegant, all glass finish.
The Multi-Part Flushglaze Rooflight is available in bespoke sizes and glass specifications, allowing it to be used in any project, adding an elegant and striking architectural element.
Key features
Optional extras
Specification
Min span |
400mm |
Max span |
4131mm |
Min width |
400mm |
Max width |
4313mm |
Min upstand pitch |
3 Degrees |
Max upstand pitch |
70 Degrees |
Glazing Vision recommends a pitch of at least 5° for standard units.
Note that the minimum and maximum span, width and pitch are dependent on various factors, your technical sales advisor will be happy to advise on these. Further information on upstand requirements and product dimensions can be found on our website or by contacting your technical sales advisor.
Structural integrity of the Flushglaze Multi-Part Rooflight is assured through the use of finite element analysis (FEA) and testing. Further information and specific performance details can be obtained from your Technical Sales Advisor. The standard Flushglaze Multi-Part Rooflight has been thoroughly tested and achieved the following classification results:
Size: 2000 mm span x 2500 mm width, Pitch: 0°
Air Permeability - EN 12207 - Class 4 + 600Pa
Water Tightness - EN 12208 - Class 9A 600Pa
The Multi-Part Flushglaze Rooflight has been expertly designed with security as a priority - The product is tested to LPS2081 Issue 1:2015, approved by the Loss Prevention Certification Board (Cert/LPCB ref: 1347a) and Secured by Design.
To achieve Security Rating A, the inner pane must be at least 8.8 mm PVB laminated glass (two 4 mm thick panes separated by an 0.8 mm thick PVB interlayer).
To achieve Security Rating B, the inner pane must be at least 9.5 mm ionomer laminated glass (two 4 mm thick panes separated by a 1.5 mm thick ionomer interlayer).
Please contact our team if you have off-spec requirements for dimensions, glass or anything else, we’ll be happy to assist
Standards
Awards and certifications
Made in Britain
Glazing Vision rooflights are assembled on site in our rural Norfolk factory to ensure a high quality product - Made in Britain, trusted internationally.
ISO 9001 & ISO 14001
Glazing Vision operates to BSI ISO9001 and ISO14001 standards to ensure high quality rooflights
Secured by Design
Glazing Vision rooflights have been extensively tested and Secured by Design
Approved by the BBA
Glazing Vision rooflights have been approved by the BBA, with our Flushglaze Rooflight being the first flat rooflight ever approved by BBA
Approved by the LPCB
Glazing Vision Rooflights have been approved by the Loss Prevention Certification Board, allowing them to meet enhanced security requirements.
QualiCoat Applicator
Glazing Vision rooflights feature QualiCoat approved aluminum framework to ensure a high quality paint finish
Compare with other products
Access
Fire rated
Flat roof
Pitched roof
Residential
Ventilation
Walk on
Flushglaze Fixed Multipart Rooflight
Flushglaze Fixed Rooflight
Flushglaze Fixed Circular Rooflight

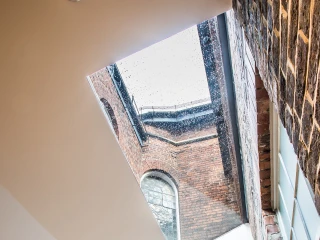

Flushglaze Wall Abutted Rooflight
Flushglaze Eaves Rooflight
Flushglaze Walk On Rooflight
Ridgeglaze Fixed Rooflight
Manuals & guides
CAD & BIM
Frequently Asked Questions
Glazing Vision understands that choosing the right rooflight for your property is an important decision. To help, we've compiled answers to some of the most frequently asked questions about our Flushglaze Multi-Part Rooflight - If you have a question that is not listed here, feel free to contact our experienced team.
Select Glazing Vision flat rooflights can be installed at a pitch of up to 70 degrees such as the Flushglaze Fixed Rooflight, however if your roof pitch exceeds this, you will need to install a roof window.
There are numerous ways that the glass panes of the MultiPart Rooflight can be affixed together - Back to back angles, silicone seals, or glass fins. The adjoining method that you choose will depend on your requirements.
Glazing Vision rooflights are manufactured with fully thermally broken framework and are designed to have low air permeability and high weather resistance therefore with professional installation, condensation is unlikely. To reduce the likeness of condensation, increase levels of ventilation in your property.
If you opt for EnduroShield Easy Clean treatment, the chemically bonded treatment will keep the glass clean as any dirt will run off of the glass - An occasional clean with a non abrasive cleaning solution will ensure that the glass looks as good as new.
Yes, all of our flat rooflights require an upstand, the minimum requirements for your upstand will be outlined in the product data sheets.
Lead times vary per product as they are carefully assembled and tested in-house, but your local Technical Sales Manager can advise you of our latest lead times.
