Turn Daylight Into a Design Feature
Flat roof

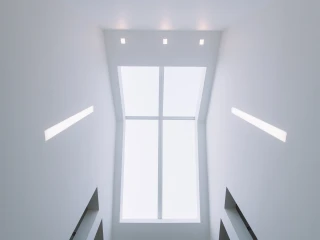

Imagine a space transformed by an abundance of natural daylight, with expansive views of the sky and an almost invisible transition between glass and structure. The Flushglaze Multi-Part Skylight is designed to create exactly that experience; bringing light, openness and a stronger connection to the outdoors into residential, commercial and public spaces.
For a clean, frameless interior, a structural silicone seal can be utilized. Alternatively, glass 'fins' can be used to offer an especially seamless, all-glass aesthetic, helping to maximize daylight and minimize visual obstruction. For larger spans, aluminum back-to-back angles provide the strength required while maintaining a refined appearance.
Available in custom sizes and glass specifications, the Multi-Part Flushglaze can be tailored to the ambition of your project, from creating bright, inviting interiors to making a dramatic architectural statement.
Create a space that feels bigger, brighter and closer to the sky.
Key features
Optional extras
Connect To An Expert
Contact a Technical Sales Manager
Please provide us with your project zipcode, and we will assign you to an experienced Technical Sales Manager
We’ll find the best person for you to speak to and be in touch within one working day.
Specification
Min span |
16" |
Max span |
169" |
Min width |
16" |
Max width |
169" |
Min curb pitch |
5/8” : 12” |
Max curb pitch |
32-7/8” |
Glazing Vision recommends a pitch of at least 1-1/8” : 12” for standard units
Note that the minimum and maximum span, width and pitch are dependent on various factors, your technical sales advisor will be happy to advise on these. Further information on curb requirements and product dimensions can be found on our website or by contacting your technical sales advisor.
Structural integrity of the Flushglaze Multi-Part Skylight is assured through the use of finite element analysis (FEA) and testing. Further information and specific performance details can be obtained from your Technical Sales Advisor. The standard Flushglaze Skylight has been thoroughly tested and achieved the following classification results:
Size: 1829 mm (72”) span x 3982 mm (156-3/4”) width Pitch: 3° (5/8” : 12”)
Performance Grade 50 (PG 50)
Air permeability - ASTM E283 - ±600 Pa (±12.53 psf)
Watertightness - ASTM E331 and E547 - 600 Pa (12.53 psf)
Wind resistance - ASTM E330 - ±2400 Pa (±50.13 psf) Serviceability +4800 Pa (+100.25 psf), -3600 Pa (-75.19 psf) Safety
The Flushglaze Multi-Part Skylight has been expertly designed with security as a priority and has been certified by ICC (International Code Council) conforming to ICC-ES 2021 International Building Code & ICC-ES 2021 International Residential Code.
Please contact our team if you have off-spec requirements for dimensions, glass or anything else, we’ll be happy to assist
Awards and certifications
ICC Certified
Our Flushglaze Skylights have been certified by ICC (International Code Council) after extensive testing which allows the them to be utilized in Los Angeles projects.
AIA CES Lunch & Learn Providers
Glazing Vision provides architects with free, AIA CES Approved Lunch & Learns
National Glass Association Member
Glazing Vision is a member of The National Glass Association
Compare with other products
Access
Fire rated
Flat roof
Pitched roof
Residential
Ventilation
Walk on
Flushglaze Fixed Multipart Skylight
Flushglaze Fixed Skylight
Flushglaze Wall Abutted Skylight
Flushglaze Eaves Skylight
Flushglaze Walkable Skylight
Ridgeglaze Fixed Skylight
Downloads
Specification
Manuals & guides
CAD & BIM
Frequently Asked Questions
Glazing Vision understands that choosing the right skylight for your property is an important decision. To help, we've compiled answers to some of the most frequently asked questions about our Flushglaze Multi-Part Skylight - If you have a question that is not listed here, feel free to contact our experienced team.
There are numerous ways that the glass panes of the MultiPart Skylight can be joined together - Back to back angles, silicone seals, or glass fins. The connecting method that you choose will depend on your requirements.
Overheating is a common concern with skylights, however opting for a UV/Solar coating will ensure only light can come through the skylight, reflecting infrared radiation. Another way to combat overheating is installing blinds as these will automatically create a shade for your skylight.
Lead times vary per product as they are carefully assembled and tested in-house, but your local Technical Sales Manager can advise you of our latest lead times.
No, Glazing Vision skylights are manufactured with double glazed glass as standard which reduces rain noise compared to single glazing, if you require further noise reduction, we have a range of glazing options available.
No, you can not order just the glass from us as we assemble the entire skylight unit in our in house factory to ensure a high level of quality.
