Our team will give you expert advice and guidance on the entire design and specification process including our extensive product range, including key considerations and optional extras and our dedicated custom service
Access Your Roof for Essential Maintenance Tasks
Flat roof
Access
The Glazing Vision SkyHatch Skylight is a practical and stylish solution for safe and easy access to your roof to carry out essential maintenance works and is available in both Manual and Electric operations.
With its secure locking mechanism and precise engineering by our in-house team, the Glazing Vision SkyHatch Skylight ensures peace of mind alongside its elegant design.

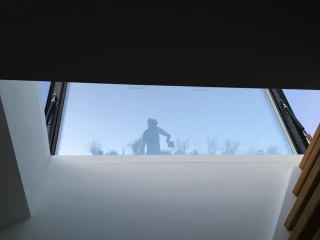

Available in both manual and electric operation, the Manual SkyHatch Skylight uses a combination of gas struts and spring assisted opening mechanisms to make the unit easier to open and remain stable in the open position. The Electric SkyHatch is operated effortlessly from a wall switch, offering connectivity to your Home Automation System as well as intelligent Rain Sensors and Thermostat. The Electric Access SkyHatch can be utilized for natural ventilation when partially opened.
Key features
Optional extras
Talk to a Product Specialist
Technical Specification Manager details not found
We're sorry, but we couldn't find a Technical Specification Manager for this area.
We’ll find the best person for you to speak to and be in touch within one working day.
Your TSM
Specification
Min span |
43" |
Max span |
43" |
Set width |
43”, 59” or 79” only |
||
Min curb pitch |
5/8” : 12” |
Max curb pitch |
2” : 12” |
Glazing Vision recommends a curb pitch of at least 1-1/8” : 12” (5°)
Note that the minimum and maximum span, width and pitch are dependent on various factors, your technical sales advisor will be happy to advise on these. Further information on curb requirements and product dimensions can be found on our website or by contacting your technical sales advisor.
Min span |
32" |
Max span |
59" |
Min width |
32" |
Max width |
78" |
Min area |
6.9 ft2 |
Max area |
23.6 ft2 |
Min curb pitch |
3 degrees |
Max curb pitch |
10 degrees |
Note that the minimum and maximum span, width and pitch are dependent on various factors, your technical sales advisor will be happy to advise on these. Further information on curb requirements and product dimensions can be found on our website or by contacting your technical sales advisor.
Structural integrity of the SkyHatch Access Skylight is assured through the use of finite element analysis (FEA) and testing. Further information and specific performance details can be obtained from your Technical Sales Advisor.
The Glazing Vision SkyHatch Skylight has been designed by our in-house team with security as a priority and has been extensively tested.
Please contact our team if you have off-spec requirements for dimensions, glass or anything else, we’ll be happy to assist
Compare with other products
Access
Fire rated
Flat roof
Pitched roof
Residential
Ventilation
Walk on
Skyhatch Roof Access Skylight
Skydoor Hinged Access Skylight
Visionvent Vent Only Skylight
Free Standing Skybox Skylight
Three Wall Box Skylight
Sliding Over Fixed Skylight
Sliding Over Roof Skylight
Downloads
Specification
Manuals & guides
CAD & BIM
Frequently Asked Questions
Glazing Vision understands that choosing the right skylight for your property is an important decision. To help, we've compiled answers to some of the most frequently asked questions about our SkyHatch Access Skylight - If you have a question that is not listed here, feel free to contact our experienced team.
No, the SkyHatch Skylight is for irregular, maintenance access therefore a ladder needs to be used - Installing a staircase underneath for access is not regulated.
Yes, Glazing Vision Skylights can be connected to your Home Automation System. Our skylights also boast numerous smart features such as rain sensor connectivity, thermostat connectivity, and more.
No, you can not order just the glass from us as we assemble the entire skylight unit in our in house factory to ensure a high level of quality.
No, unlike most roof lanterns on the market that arrive dis-assembled, Glazing Vision Pyramid Skylights arrive on site fully assembled to ensure a high quality product.
Lead times vary per product as they are carefully assembled and tested in-house, but your local Technical Sales Manager can advise you of our latest lead times.
