Effortlessly Embrace Natural Daylight & Ventilation
Flat roof
Ventilation
The Glazing Vision VisionVent Skylight is designed to provide a combination of natural daylight and natural ventilation to your space, it has been specifically designed by our specialist in-house team for ventilation purposes, offering smooth and reliable operation in three ways; Manual, Electric or Chain-Actuated.
The manually operated VisionVent opens using a screw jack mechanism which is mounted inside the internal aperture and opened using a telescopic crank handle.
The chain actuated VisionVent is powered open by an integrated chain drive unit which is seamlessly housed within the skylight frame.

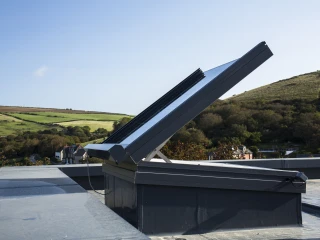

The electrically operated VisionVent is driven by twin drive synchronized mechanisms, which allows larger sizes to be manufactured and full connectivity to extra options such as remote control and building management systems.
Each VisionVent unit features dual color, thermally broken framework and is supplied with heat soak tested low e toughened glass as standard.
Key features
Optional extras
Talk to a Technical Sales Manager
Technical Specification Manager details not found
We're sorry, but we couldn't find a Technical Specification Manager for this area.
We’ll find the best person for you to speak to and be in touch within one working day.
Your TSM
Specification
Min span |
17" |
Max span |
93" |
Min width |
17" |
Max width |
93" |
Min area |
1.9 ft2 |
Max area |
24.2 ft2 |
Min curb pitch |
5/8” : 12" |
Max curb pitch |
32-7/8” |
Glazing Vision recommends a pitch of at least 1-1/8” : 12”
Note that the minimum and maximum span, width and pitch are dependent on various factors, your technical sales advisor will be happy to advise on these. Further information on curb requirements and product dimensions can be found on our website or by contacting your technical sales advisor.
Min span |
32" |
Max span |
93" |
Min width |
34" |
Max width |
94" |
Min curb pitch |
5/8” : 12" |
Max curb pitch |
32-7/8” |
Glazing Vision recommends a pitch of at least 1-1/8” : 12”
Note that the minimum and maximum span, width and pitch are dependent on various factors, your technical sales advisor will be happy to advise on these. Further information on curb requirements and product dimensions can be found on our website or by contacting your technical sales advisor.
Min span |
32" |
Max span |
93" |
Min width |
40" |
Max width |
94" |
Min curb pitch |
5/8” : 12" |
Max curb pitch |
32-7/8” |
Glazing Vision recommends a pitch of at least 1-1/8” : 12”
Note that the minimum and maximum span, width and pitch are dependent on various factors, your technical sales advisor will be happy to advise on these. Further information on curb requirements and product dimensions can be found on our website or by contacting your technical sales advisor.
Structural integrity of the Manual, Electric and Chain Actuated VisionVent Skylights is assured through the use of finite element analysis (FEA) and testing. Further information and specific performance details can be obtained from your Technical Sales Advisor. The range of VisionVent Skylights have been thoroughly tested.
The range of VisionVent Skylights have been specially designed with security as a priority - The skylights have been extensively tested.
Please contact our team if you have off-spec requirements for dimensions, glass or anything else, we’ll be happy to assist
Compare with other products
Access
Fire rated
Flat roof
Pitched roof
Residential
Ventilation
Walk on
Visionvent Vent Only Skylight

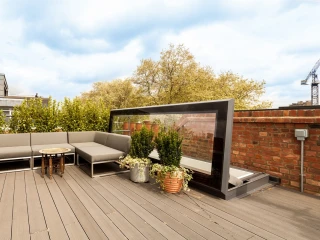

Skydoor Hinged Access Skylight

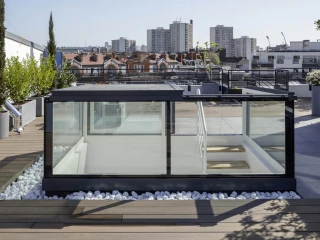

Free Standing Skybox Skylight

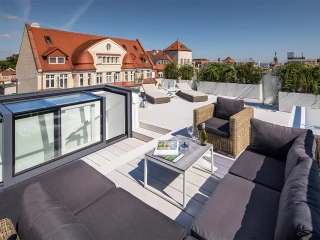

Three Wall Box Skylight

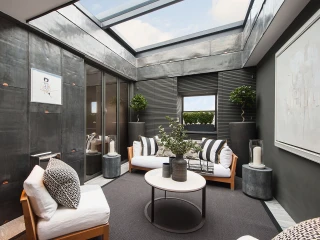

Sliding Over Roof Skylight
Downloads
Specification
Manuals & guides
CAD & BIM
Frequently Asked Questions
Glazing Vision understands that choosing the right skylight for your property is an important decision. To help, we've compiled answers to some of the most frequently asked questions about our VisionVent Vent Only Skylight - If you have a question that is not listed here, feel free to contact our experienced team.
Yes, Glazing Vision Skylights can be connected to your Home Automation System. Our skylights also boast numerous smart features such as rain sensor connectivity, thermostat connectivity, and more.
Considerations need to be taken where the Manual VisionVent is installed as it requires accessibility from below as it is opened with a telescopic crank handle. We recommend installation of up to 3m above floor level
No, you can not order just the glass from us as we assemble the entire skylight unit in our in house factory to ensure a high level of quality.
Yes, all of our fixed skylights require a curb, the minimum requirements for your curb will be outlined in the product data sheets.
Lead times vary per product as they are carefully assembled and tested in-house, but your local Technical Sales Manager can advise you of our latest lead times.
