Transform Your Space With Uninterrupted Sky Views
Pitched roof
Residential

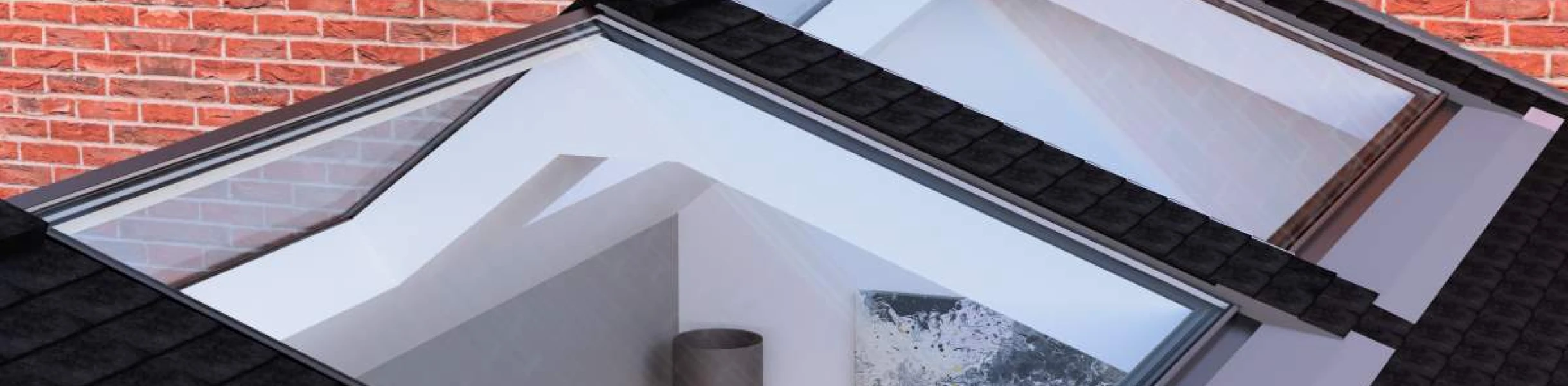

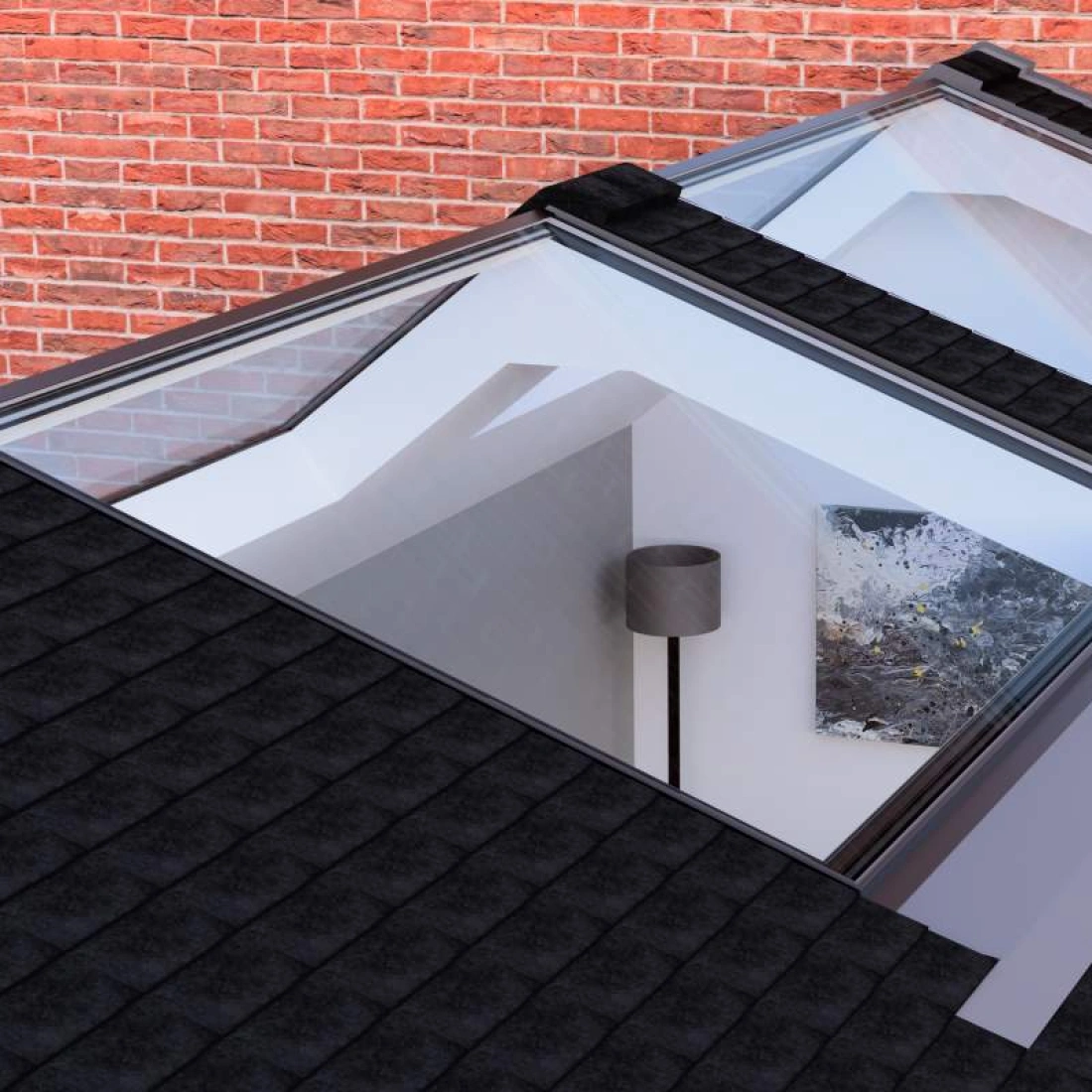

The Glazing Vision PitchRidge Roof Window is an elegant, fixed roof window comprising two panes joined at the ridge using back-to-back angles and a silicone seal to maintain the frameless internal views that are renowned with Glazing Vision products.
The PitchRidge Roof Window is robust and long-lasting, boasting excellent thermal performance and air tightness. The aluminum frame of the product employs a dual hardness EPDM insulating gasket to thermally isolate the frame from the interior of the building.

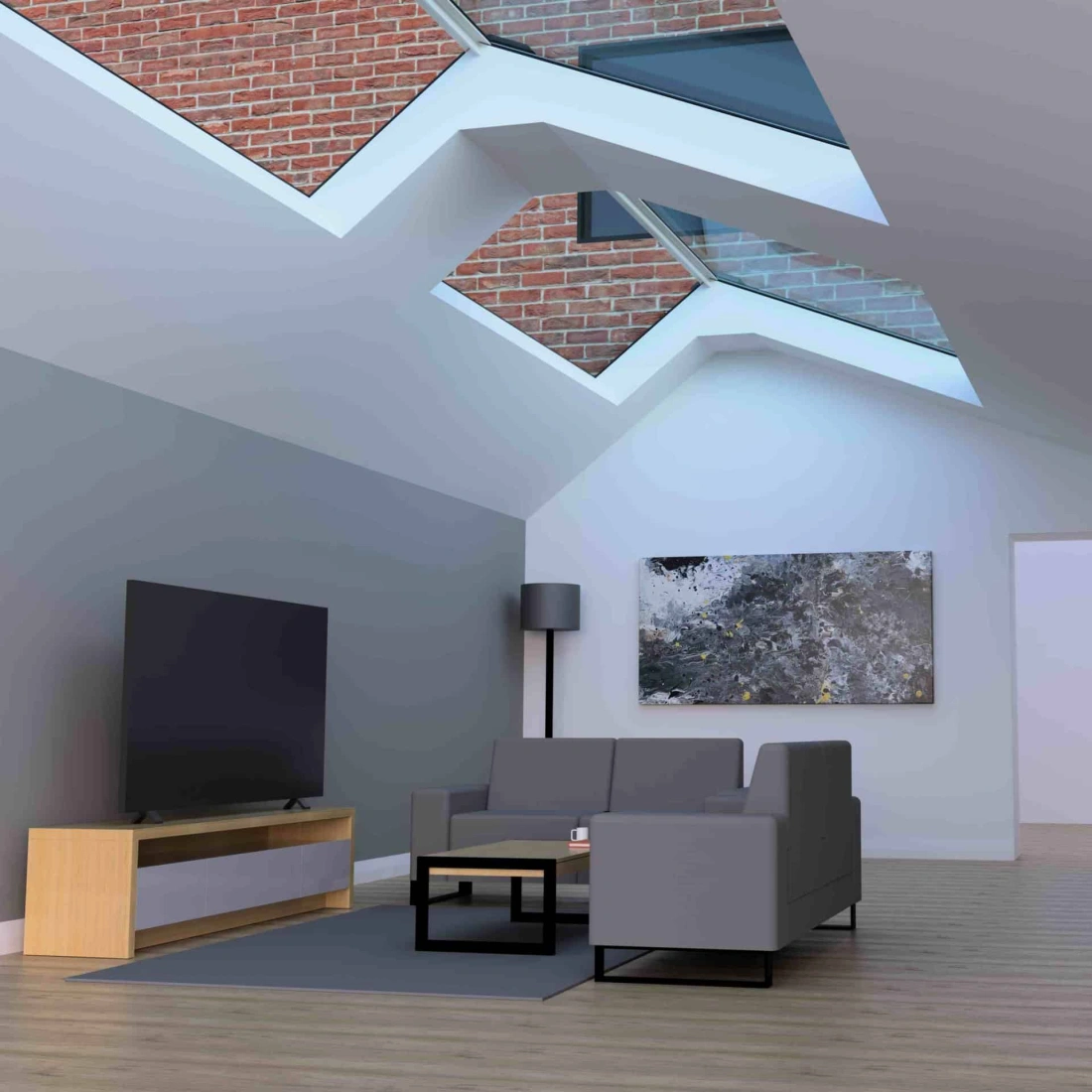

The PitchRidge Roof Window embodies our vision of 'Minimal Framework, Maximum Daylight' through its minimum visible internal structure.
Key features
Optional extras
Talk to a Technical Sales Manager
Technical Specification Manager details not found
We're sorry, but we couldn't find a Technical Specification Manager for this area.
We’ll find the best person for you to speak to and be in touch within one working day.
Your TSM
Specification
Min span (Each side) |
~4.5” |
Max span (Each side) |
160” |
Min width |
~2.5” |
Max width |
157" |
Min roof pitch |
3-1/4” : 12” |
Max roof pitch |
20-3/4” : 12” |
Note that the minimum and maximum span, width and pitch are dependent on various factors, your technical sales advisor will be happy to advise on these.
Structural integrity of the PitchRidge Roof Window is assured through the use of finite element analysis (FEA) and testing. Further information and specific performance details can be obtained from your Technical Sales Advisor.
The PitchRidge Roof Window has been expertly designed with security as a priority - The product has been extensively tested and tested to AAMA/WDMA/CSA 101/1.S.2/A440-17.
Please contact our team if you have off-spec requirements for dimensions, glass or anything else, we’ll be happy to assist
Compare with other products
Access
Fire rated
Flat roof
Pitched roof
Residential
Ventilation
Walk on
Pitchridge Fixed Roof Window
Pitchglaze Fixed Roof Window
Pitchvent Roof Window
Ridgeglaze Fixed Skylight
Flushglaze Eaves Skylight
Flushglaze Fixed Skylight
Downloads
Specification
Manuals & guides
CAD & BIM
Frequently Asked Questions
Glazing Vision understands that choosing the right skylight or roof window for your property is an important decision. To help, we've compiled answers to some of the most frequently asked questions about our PitchRidge Roof Window - If you have a question that is not listed here, feel free to contact our experienced team.
Glazing Vision does not sell “traditional” windows, we specialize in the manufacture of roof windows; Roof windows are specifically designed to be installed flush with the roof tiles at a pitch of 3-3/4” : 12” to 20-3/4” : 12”
Unlike traditional windows, Glazing Vision roof windows provide you with uninterrupted views to the outside, increasing natural daylight flow.
A Skylight is designed to be installed on a curb, whereas a roof window is designed to be installed flush with the roof tiles at a pitch range of 3-3/4” : 12” to 20-3/4” : 12”
No, you can not order just the glass from us as we assemble the entire skylight unit in our in house factory to ensure a high level of quality.
No, Glazing Vision’s clever design means that your skylight boasts minimal to no internal framework, allowing you to have Sky Only Views looking out of the unit.
